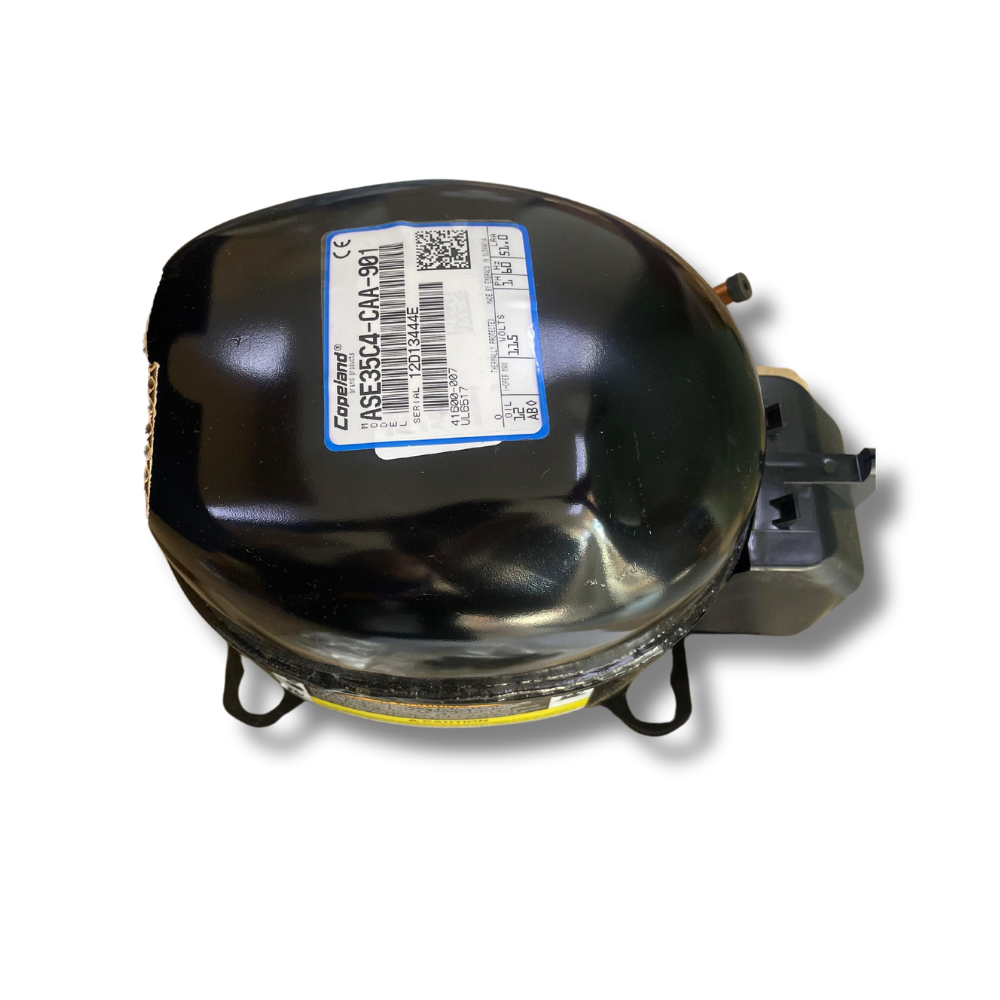

COMPRESOR COPELAND HERMETICO MONOFÁSICO 1/2 HP R407C 110V/1

Solo quedan 1
SKU: ASE35C4-CAA-901
Precio regular $ 5,600.00 IVA
Precio regular $ 18,929.51 Descuento Precio de venta $ 5,600.00 IVA

Detalles del producto

  • SKU ASE35C4-CAA-901

SKU: ASE35C4-CAA-901

COMPRESOR CPLND HERM 1/2HP R407C 110V/1

Performance

Evaporator Temp. (°F) 20.00 0
Condensing Temp. (°F) 120.00 110
Return Gas Temp. (°F) 40.00 40
Liquid Temp. (°F) 120.00 110
Capacity (BTU/hr) 3430 2230
Power (W): 711 551
Current (Amps): 7.9 6.9
EER(BTU/Wh): 4.8 4
Mass Flow (lbs/hr): 54 33
Sound Data @
Sound Power (dBA): 0 Avg 0 Max
Vibration mils(peak-peak): 0.0 Avg 0.0 Max
Record Date: 2012-02-13

Mechanical

Displacement (in^3/Rev): .74
Displacement (ft^3/Hr):
Overall Length (in): 10.50
Overall Width (in): 6.40
Overall Height (in): 8.10
Mounting Length (in): 6.50
Mounting Width (in): 4.00
Mounting Height (in): 8.60
Suction Size (in),Type: 5 / 16 Stub
Discharge Size (in),Type: 1 / 4 Stub
Initial Oil Charge (oz): 12
Oil Recharge (oz): 10
Oil Type: ABO
Net Weight (lbs): 25.6
Internal Free Volume (in^3):

*Overall compressor height on Copeland Brand Product's specified mounting grommets.

Electrical

LRA High* (Amps): 51
LRA Low*(Amps):
LRA Half Winding (Amps):
MCC (Amps): 16.8
Max Operating Current (Amps):
RLA, MCC/1.4(use for contactor selection)(Amps): 12.0
RLA, MCC/1.56(use for breaker & wire size selection)(Amps): 10.8
RPM: 3500
Box IP :
UL File No: SA-2337
UL File Date: 1974-12-03

*Low and High refer to the low and high nominal voltage ranges for which the motor is approved.

Ficha técnica
